3-wing Front Door
The front door is constructed with a steel-tube load bearing chassis, providing support for the large central door. It includes the following features:

• Each of the door wings is equipped with perimeter gaskets made from high neoprene rubber, ensuring a tight and secure seal.
• All the shutters include inspection windows equipped with safety glass, offering clear visibility and enhanced protection.
• The door’s locking system is built with durable steel components with reinforced handle for added security.
• The door is thermally insulated with EPS (Expanded Polystyrene) to enhance energy efficiency and maintain stable temperatures within the spray booth.

Service Door
Service door is strategically located at side of the cabin for easy access. It includes the following features:

• Equipped with a safety lock with overpressure protection, ensuring safe operation
• Fitted with a porthole with safety glass, providing clear visibility for inspection without compromising safety
• The door is thermally insulated with EPS (Expanded Polystyrene) to enhance energy efficiency and maintain stable temperatures within the spray booth.
• Designed with an anti-explosion handle to maximize safety in high-risk environments

Side Walls

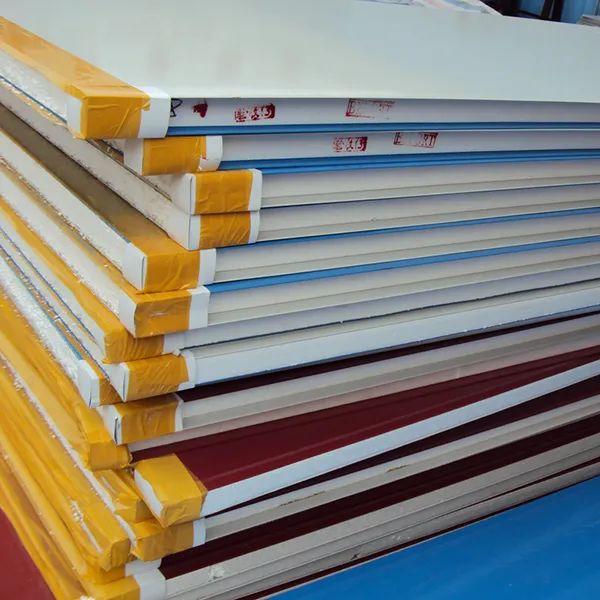

The side walls are constructed from 50 mm thick sandwich panels, custom-built by BZB. These panels are assembled using a precise male-female interlocking system, eliminating the need for welds or screws, and feature internal EPS insulation with a density of 50 Kg/m³, providing complete perimeter sealing. It includes the following features:

• The panels are engineered to withstand corrosive environments, ensuring long-lasting durability
• Designed to resist solvents effectively, maintaining structural integrity even in challenging conditions
• The smooth surface of the panels allows for effortless cleaning and maintenance, ensuring a hygienic and pristine environment.

Filtering Ceiling
The filtering ceiling is built with a sturdy structure of plane trusses and section bars, holding filtering panels in white frames secured with Bakelite pommels. Made from painted galvanized sheet metal, it ensures a perfect hermetic seal.

• Constructed from painted galvanized sheet metal, ensuring a secure hermetic seal

This system achieves a filtration efficiency of 99.8%, compliant with AFI standards. The filters are heat-resistant up to 120°C, self-extinguishing according to DIN 53438 - Class F1 standards, and saturated with fixing resin dust for enhanced durability.

• Filtration efficiency of 99.8%, heat-resistant up to 120°C.
• Self-extinguishing filters saturated with resin dust for added durability.

Lighting
Top lighting is installed in an inclined position on both sides of the cabin ceiling.

• Easily removable from inside the cabin
• Constructed with hermetically sealed LED tubes, protected by laminated glass, metal frames, and neoprene gaskets
• Certified to meet CE standards
• Delivers high-performance neutral light
• Estimated light intensity of +800 lux

Metal Basement with Ramps
The metal basement, standing at 300mm in height, features modular panels of electro galvanized grades, designed with two lines grill and three lines checkered plate lines, one-piece design enables the platform to withstand heavy workpieces with maximum weight to be supported of 650 Kg for wheel print. Besides, there are several under-grates metallic looms in order to close central zones where suction is not provided, with paint-stop filter.

• Easy handling and cleaning.

Ventilation Unit - Air Extraction

Extractor unit
Centrifugal fan and filtering equipment consisting of two layers of dry filters located under the fans.

• One 7.5 kW motor
• One high-efficiency turbine fan, for an airflow of 20,000 m³/h
• Holding structure in press bent galvanized iron
• Closure panels insulated
• One manual calibration damper

Documentation provided with the booth:

• User manual, program management guide, system description and detailed usage instructions
• Electrical diagrams of the system

Control Panel
Designed to meet CE standards of control system, it includes the following components:

• Ventilation control with start/stop functions, adjustable based on the work phase
• Temperature programming for precise control, including start/stop settings
• On/off control for the booth’s lighting
• Fault alarms to notify any system issue
• Ventilation failure detection
• Power failure alerts
• Temperature monitoring inside the cabin
• Service hours counter to track usage
• Emergency stop for immediate shutdown in case if emergency

Documentation provided with the booth:

• User manual, program management guide, system description and detailed usage instructions
• Electrical diagrams of the system
