BZB-AF1000

Car Spray Booth (Africa Standard)

Specifications of BZB-AF1000 Car Spray Booth (Africa Standard)
Outside dimension: 7000×5560×3430mm (L×W×H)
Inside dimension: 6900×4000×2650mm (L×W×H)
Front door dimension: 3000×2600mm (W×H)
Operator’ door dimension: 800×2000mm (W×H)



Chamber System
1. Wallboard: the wallboard of the paint spray system consists of flame-resistant EPS insulation board and 0.426mm thick color coated steel. The thickness of the EPS insulation board is 50mm.
2. Roof panel: galvanized sheet
3. Basement: coming with the height of 280mm, the basement of the car spray booth is composed of steel structure base, two floor gratings, and three checkered plates. In addition, this product comes with 2 pieces of 600mm wide ramps.

Air Circulation System
Inlet Fan Model: YDW-4.5AL Exhaust Fan Model: YDW-4.5L
Blower Capacity: 22000m3/h Blower Capacity: 14000m3/h
Pressure: 800Pa Pressure: 800Pa
Revolving Speed: 900rpm Revolving Speed: 900rpm
Power: 3kW Power: 4kW
Quantity: 2sets Quantity: 1set
One set automatic damper with 10N actuator

Generator
The generator is made of square steel frame and coated steel. The air supply and extraction is carried from the back of the generator.

Air Purification System
The air purification system of the car spray booth includes pre-filter, high-efficiency ceiling filter, and floor filter.

Heating System
Designed with SUS304 heat exchanger and RIELLO G20 diesel burner, the heating system of the car painting equipment offers maximum heating value up to 180000Kcal/h. Thanks to the electric actuator, the automatic changeover of paint spraying and curing can be realized. The heating process lasts about 5 to 7 minutes, with the maximum heating temperature of 80°C. The rate of oil consumption varies from 4kg to 6kg per set.

Lighting System
The lighting system of the car spray booth is capable of offering the light intensity over 1000Lux.
Ceiling light: 8 groups×4pcs=32pcs×36W
Side light: 4 groups×4pcs=16pcs×36W
Glass: transparent tempered glass

Control Box
The system is controlled by microcomputer program, offering the options such as lighting switch, car spraying control, paint curing switch, curing temperature control, time setting, failure indicator, temperature controller, emergency stop switch, breakdown alarm, etc.

Spare Parts

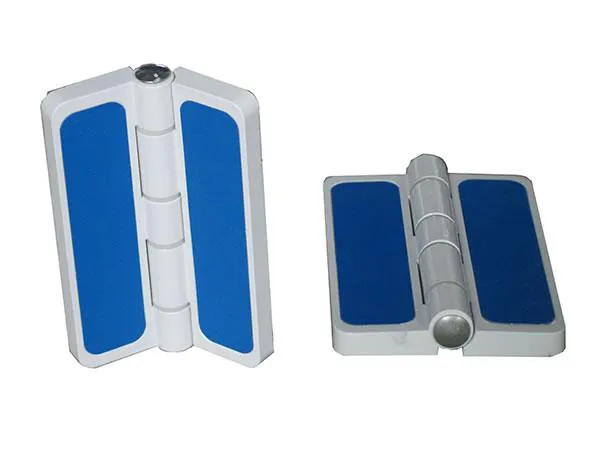

a) Steel metal front door (with tempered glass view windows) b) New style aluminum hinge

c) Door plug


d) Belimo brand actuator


e) Heat exchanger (SUS304 galvanized steel) f) Centrifugal fans

Preferential Treatment
It is vitally important for a company to maintain friendly relationship with distributors and dealers in order to provide considerate after-sales service to its client. Therefore, we particularly offer the following services to the distributors.
1. For each car spray booth, we will deliver 2 pieces of lamp, 2 rectifiers, 10 screws, 3-5 sheets along with the product, extra.
2. For special screw, hanger, light box sheet and some other small accessories easy to lose during installation, our warehouse worker will deliver 1-2 pieces more as the spare part.
3. As to the orders for 3-4 sets of standard car spray booth, JINGZHONGJING will present 1 piece of standard wallboard to our client.
4. 1 set of door sealing strip for 50mm wallboard and 10 pieces of electronic rectifier for the distributors who order more than 6 sets of car painting equipment from us, quarterly.
5. For the distributors who purchase more than 12 sets of industrial spray booth from us within two quarters, we will offer 1 set of front door bolt, 1 programme control box, 5 pieces of hinges, and 5 pieces of handle.
6. 1 set of actuator, 2 sets of door bolts, 10 pieces of hinges, 5 pieces of handle and temperature gauge with inductive probe for customers ordering 20 sets of car spray booth from us within 3 quarters.
7. Particularly, for the orders with the sale price 10% higher than the floor price, we will provide a reel of 1×20m fiberglass free of charge. As to the purchase order for more than 3 sets of thermal paint booth with the profit rate over 10%, we will present 1 set of roof filtering cotton.
8. We will communicate with our distributors with annual purchase amount up to RMB 2 million through Email quarterly to confirm if any support for the quick-wear parts for car spray booth is needed, such as 4kW centrifugal fan, door bolt, and some others.
