This product has been discontinued and removed from our shelves.

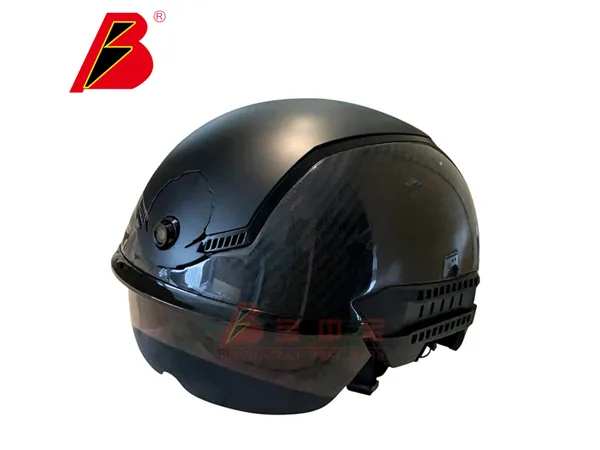

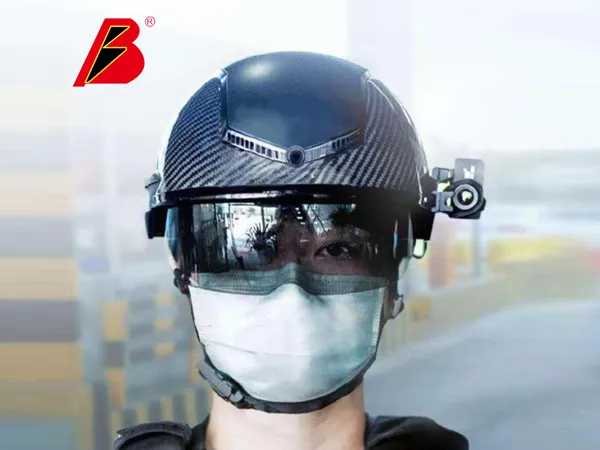

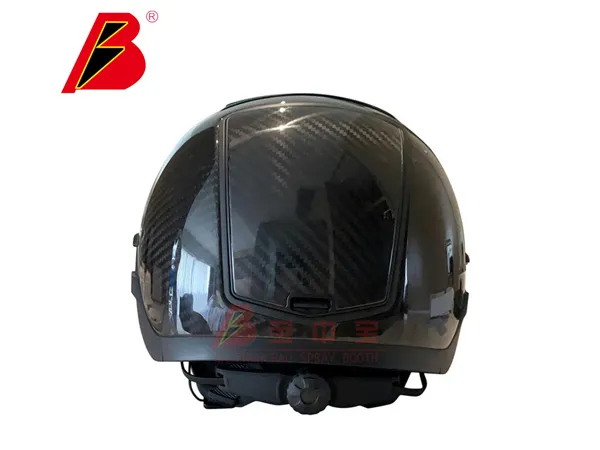

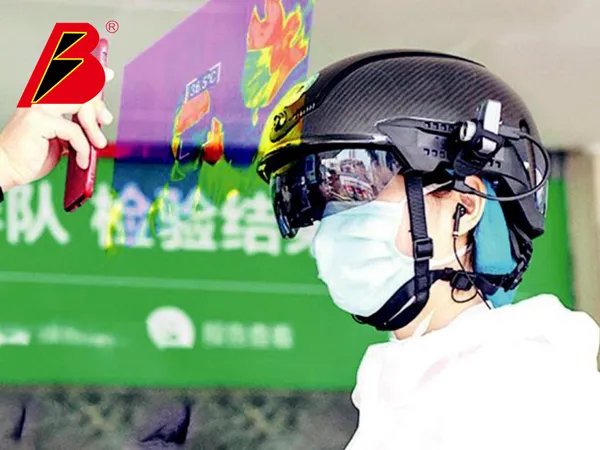

Smart Helmet
Smart helmet is a powerful and efficient epidemic prevention product which is developed with decades. It's made of advanced materials and technologies, which is used for unaware and contactless temperature measurement with high precision, ensuring rapid fever screening.
Five Powerful Functions
- Unaware and Contactless Temperature Measurement
Rapid Screening for various indoor and outdoor applications - Efficient Temperature Recording
Automatic recording of personal info with their daily body temperature - Powerful Vehicle Screening

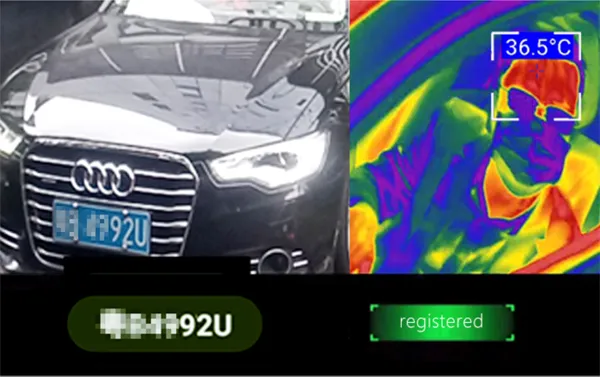

Rapid screening for vehicles and passengers - Rapid Verification

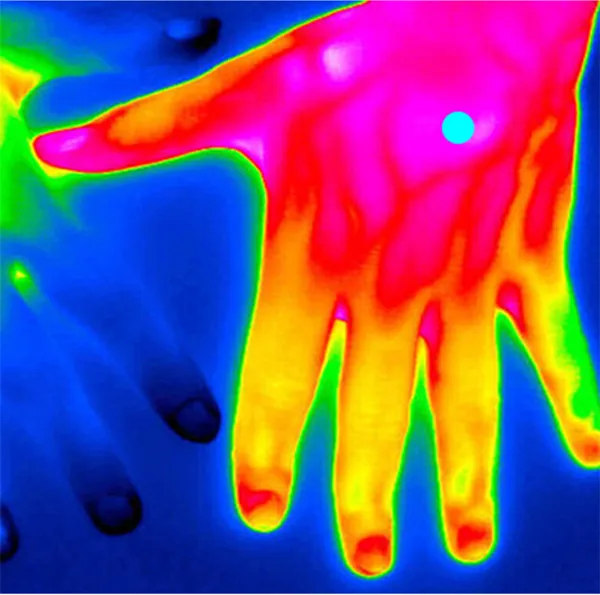

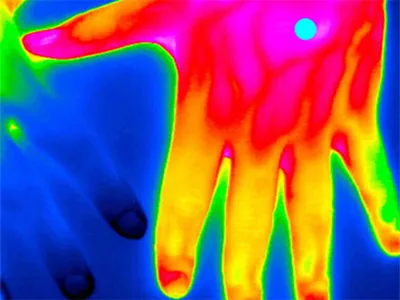

Rapid face recognition and identity verification - Thermal Imaging
Make the invisible visible
Nine Modes

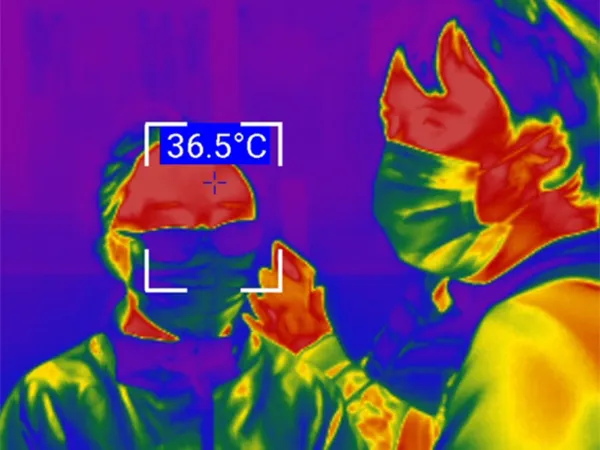

Single-person temperature measurement mode

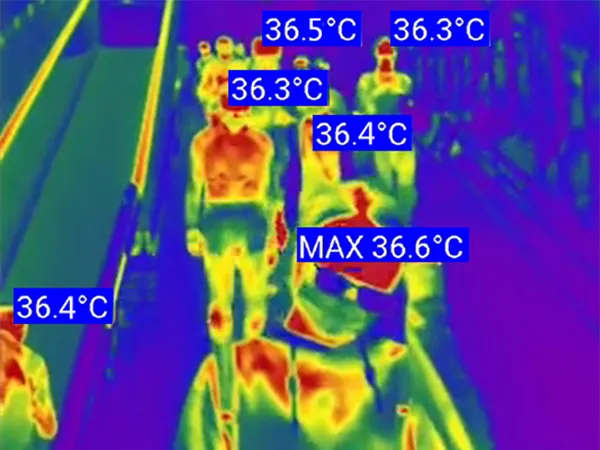

Large-crowd temperature measurement mode

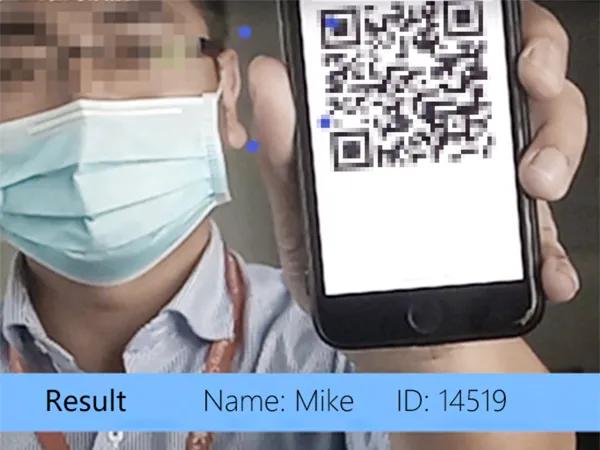

QR code mode

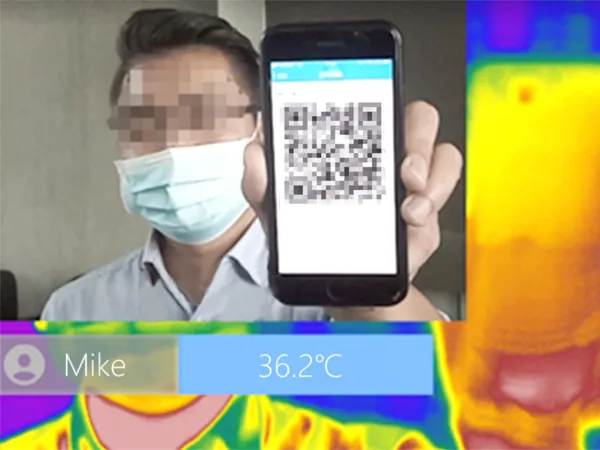

QR code & temperature measurement mode

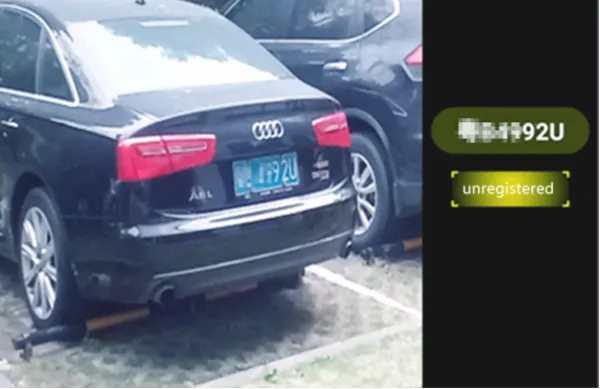

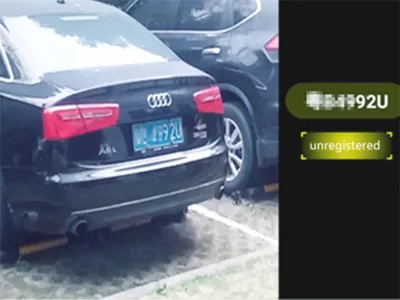

License plate recognition mode

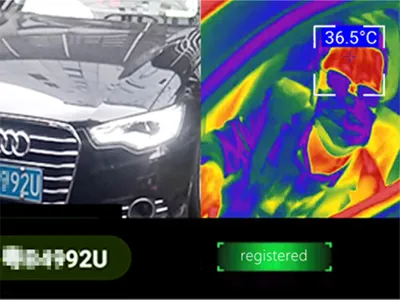

License plate recognition & temperature measurement mode

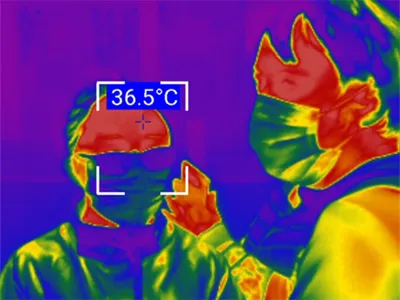

Thermographic diagnostic Imaging mode

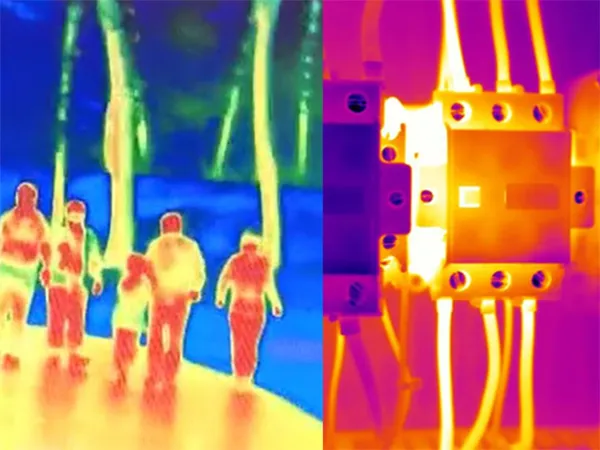

Night-vision/Facility inspection mode

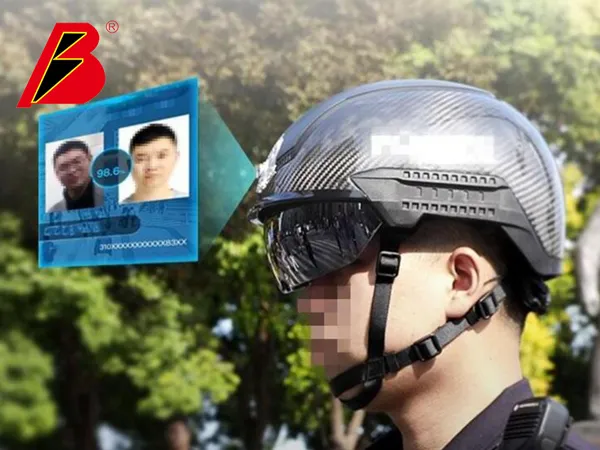

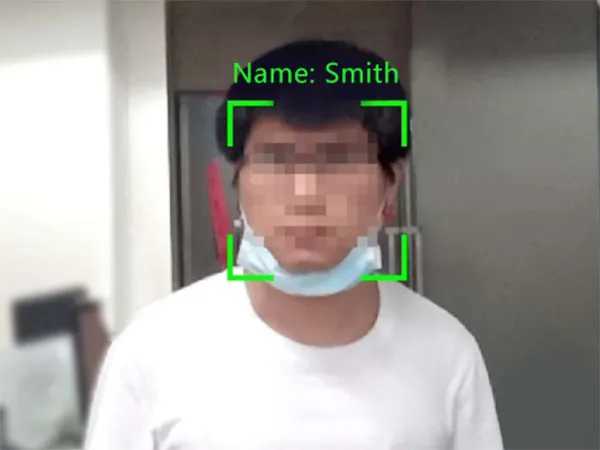

Face recognition mode

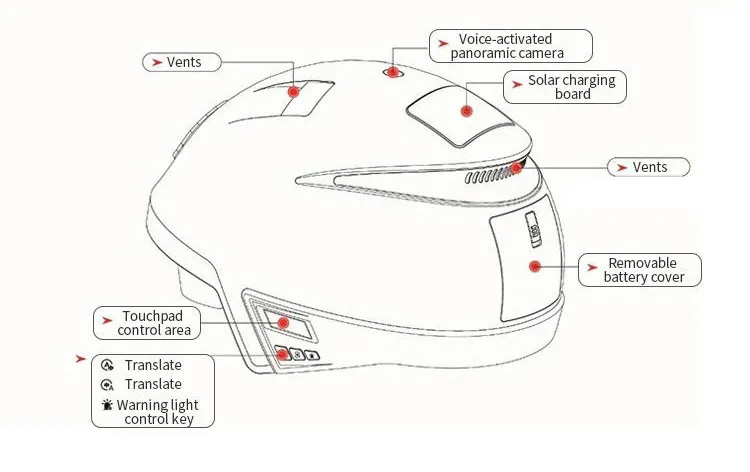

Details
Technical Parameters
| Processor | ARM Cortex A53 Octa-core 2.5GHz |
| Operating system | Android 8.1 |
| RAM | DDR 4GB |
| Memory | eMMC 64GB |
| Weight | 1135g |
| AR(augmented reality) Display Module | |
| Display | Array type optical waveguide display |
| Field of view | 35º |
| Virtual screen size | Equivalent to watching 74-inch TV from 3m away |
| Rated brightness | 300nit |
| Infrared Thermal Imaging Module | |
| Resolution | 384x288 |
| Response band | 8μm ~ 14μm |
| Frame frequency | 25Hz |
| Temperature measurement range | -20°C~120°C |
| Temperature measurement accuracy | +0.3°C within the specified range(2m by default) |
| Visible Light Camera Module | |
| Maximum pixels | 13 megapixels |
| Maximum aperture | F2.0 |
| Field of view | 78° |
| Video resolution | 1080P@30fps |
| Data Communication Module | |
| Wi-Fi | IEEE 802.11 b/g/n, 2.4GHz |
| Bluetooth | Bluetooth 4.2 backwards compatible with 3.0, 2.1, supports BLE (Bluetooth low energy) |
| Battery Module | |
| Capacity | 5000mAh |
| Voltage | DC3.7~4.2V |
| Charging voltage | DC5.0V ±5% |
| Quick charge | supports 2A fast charging |
| Protection Performance | |
| Absorbing collision energy | RF electromagnetic field radiated susceptibility |
| Penetration resistance | Complying with the requirements of penetration resistance test in GA 296-2001 |
| Electromagnetic shielding | SAR value < 0.05W/kg |
| ESD anti-interference | Complying with the requirements of ESD anti-interference in GB/T 17626.2-2006 |
| RF electromagnetic field radiated susceptibility | Complying with the requirements of ESD anti-interference in GB/T 17626.2-2006 |

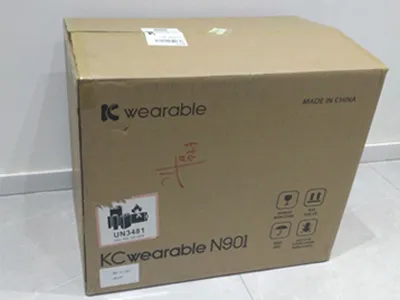

Packaging Information
| Item | 1 Set in one Package | 2 Sets in one Package | 4 Sets in one Package |
| Dimension (mm) | 470x365x290 | 580x370x480 | 580x730x480 |
| Gross Weight (kg) | 4.7 | 10 | 20 |
| Bulky Weight (kg) | 10 | 21 | 41 |
